Bush-2
The Bush is a machined railway component used in bogie systems. It is designed to provide support, alignment, and wear reduction between interacting components within railway assemblies. Manufactured as a machining part, the bush ensures reliable operation and dimensional stability under railway service conditions.
Technical Specifications
| Parameter | Value |
| Material : | C45E, C45N |

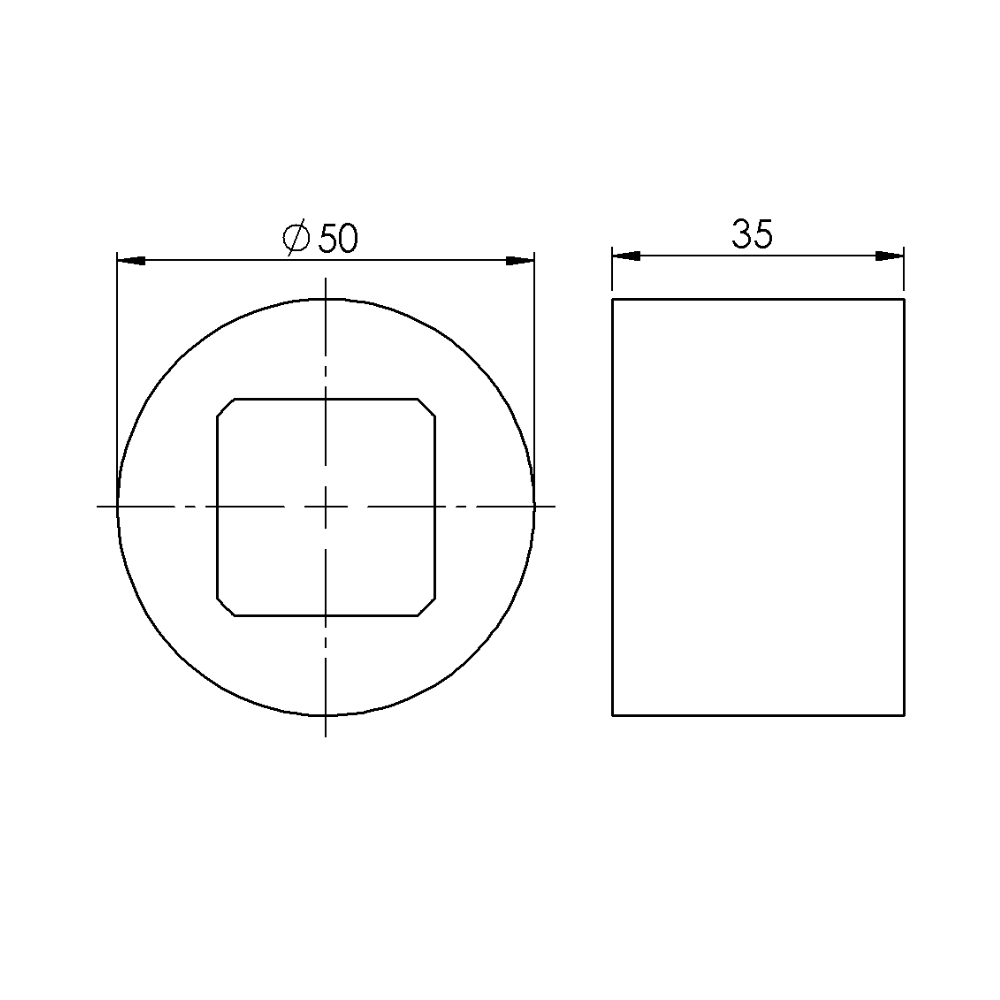

| Drawing No : | V.70.09.03.01.03 |
| Standard : | EN 10297 |
| Weight : | 0.4 kg |
| Manuf. Meth. : | Hot Forging + Machining |
| Category : | Railway Machining Parts |
| Application : | Bogie Support Systems |
- Machined railway component for bogie applications
- Designed to support alignment and reduce wear between components
- Manufactured from medium‑carbon steel material
- Precision machining for accurate fit and dimensional stability
- Suitable for railway machining part applications
- Raw material inspection
- Hot forging
- Heat treatment
- Machining
- Final inspection
- Surface defect inspection
- Macro/microstructure tests
- Dimensional inspection
- CMM (Coordinate Measuring Machine)
inspection report - NDT (Non-Destructive Testing)
- EN standards compliance
- ISO 9001 quality management system
- 3.1 material certificate
- NDT inspection approval
- Material Certificate (3.1)
- CMM Dimensional Measurement Report
- Final Inspection Report
- Traceability Documentation
- Packaging for safe transportation
