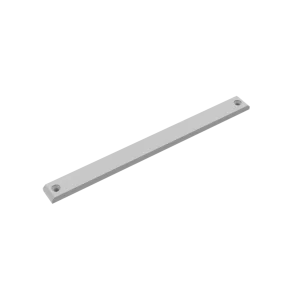

Slide Plate
The Slide Plate is a machined railway component used in Y25 bogie systems. It provides secure sliding support and alignment between structural elements, ensuring efficient distribution of load and mechanical stability. With its robust design and precision machining, the part withstands dynamic stresses, vibrations, and long-term operational conditions in railway applications.
Technical Specifications
| Parameter | Value |
| Material : | PA6, EGN, X-007 |

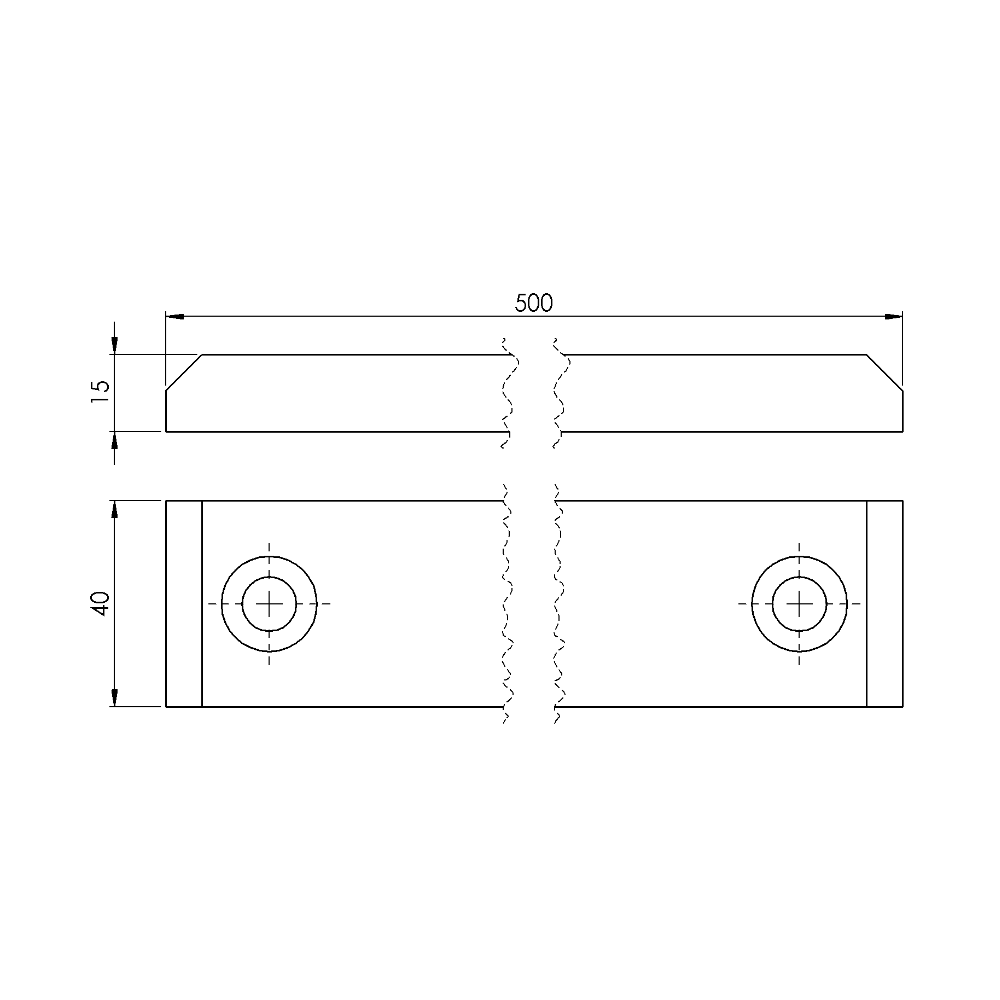

| Drawing No : | V.70.09.03.00.05 |
| Standard : | – |
| Weight : | 0.4 kg |
| Manuf. Meth. : | Machining |
| Category : | Railway Machining Parts |
| Application : | Y25 Bogie Systems |
- Designed for sliding and load transfer functions in bogie assemblies
- Excellent resistance to mechanical stresses and vibrations
- Precision-machined surfaces for accurate assembly
- Durable design for extended service life
- Raw material inspection
- Machining
- Final inspection
- Surface defect inspection
- Macro/microstructure tests
- Dimensional inspection
- CMM (Coordinate Measuring Machine)
inspection report - NDT (Non-Destructive Testing)
- EN standards compliance
- ISO 9001 quality management system
- 3.1 material certificate
- NDT inspection approval
- Material Certificate (3.1)
- CMM Dimensional Measurement Report
- Final Inspection Report
- Traceability Documentation
- Packaging for safe transportation
