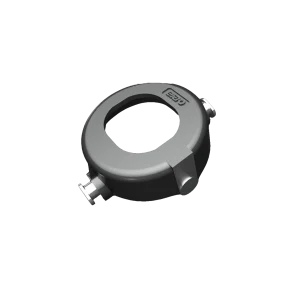

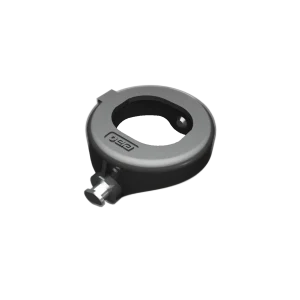

Spring Cap
Spring Cap is a structural component used in Y25 type bogie suspension systems. It ensures that the spring load is transmitted evenly across the contact surface and contributes to the overall stability of the suspension system. The component is manufactured in accordance with relevant railway industry technical requirements.
Technical Specifications
| Parameter | Value |
| Material : | E230-400MS, E260-450MS, E300-450MS |

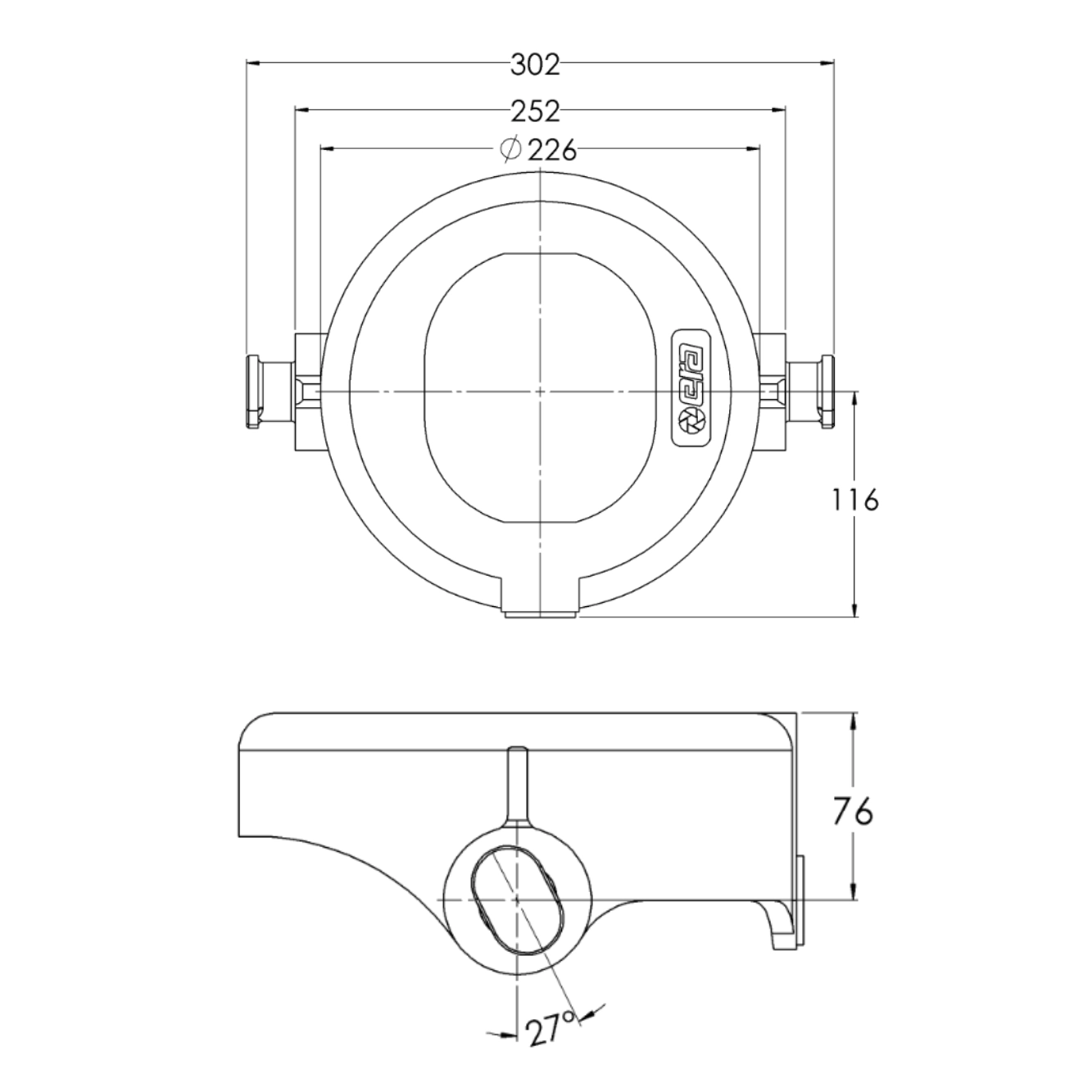

| Drawing No : | B.07.03.03.01 |
| Standard : | EN 10025-2 |
| Weight : | 6 kg |
| Manuf. Meth. : | Casting + Machining + Welding |
| Category : | Railway Casting Parts |
| Application : | Y25 Bogie Suspension Systems |
- High-strength cast steel structure
- Suitable for heavy-duty railway applications
- Machined surfaces for precise assembly
- Robust design for long service life
- Full traceability documentation
- Casting
- Machining
- Welding
- Final inspection
- Surface defect inspection
- Macro / Microstructure tests
- Dimensional inspection
- Non-Destructive Testing (NDT)
- CMM (Coordinate Measuring Machine)
measurement report
- EN standards compliance
- ISO 9001 quality management
- EN 10204-2 3.1 material certificate
- NDT certification
- Material Certificate (3.1)
- CMM Dimensional Measurement Report
- Final Inspection Report
- Traceability Documentation
- Packaging for safe transportation
