Whellset Guiding System (For Valve)

Wheelset Guiding System (For valve)

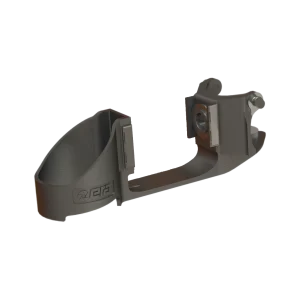

The Wheelset Guiding System (for Valve) is a structural component designed for sensor integration and used in Y25 bogie systems. It limits the lateral movement of the axle while contributing to the stability of the bogie assembly and enabling compatibility with monitoring or detection systems. The component is manufactured in accordance with applicable technical requirements of the railway industry.

Technical Specifications

Parameter      Value
Material           :E230-400MS, E260-450MS, E300-450MS

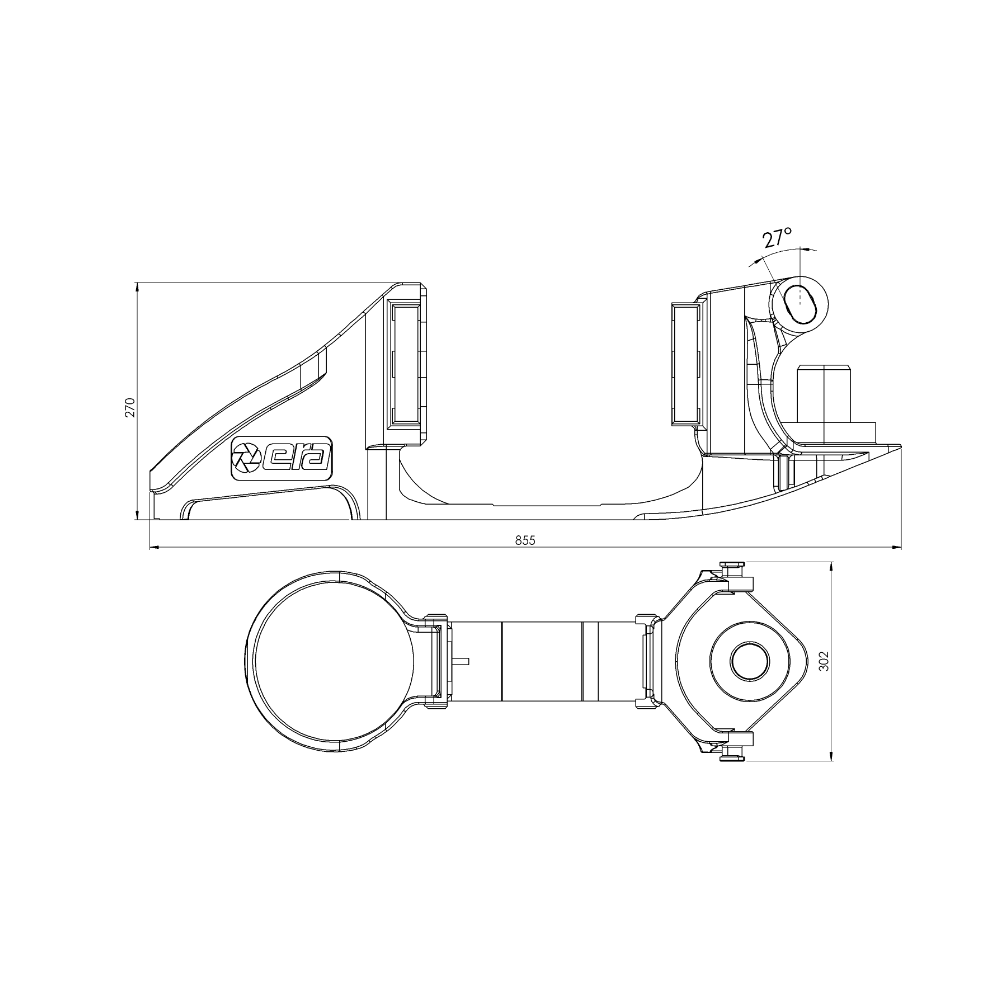

Drawing No    :B.07.04.09.00
Standard         :EN 10204
Weight              :45 kg
Manuf. Meth. :Casting + Machining + Welding
Category          :Railway Casting Parts
Application     :Bogie Systems
  • High-strength cast steel structure
  • Suitable for heavy-duty railway applications
  • Machined surfaces for precise assembly
  • Robust design for long service life
  • Full traceability documentation
  • Casting
  • Machining
  • Welding
  • Final inspection
  • Surface defect inspection
  • Macro / Microstructure tests
  • Dimensional inspection
  • CMM (Coordinate Measuring Machine)
    measurement report
  • NDT (Non-Destructive Testing),
    when applicable
  • EN standards compliance
  • ISO 9001 quality management
  • EN 10204 3.1 material certificate
  • NDT certification
  • Material Certificate (3.1)
  • CMM Dimensional Measurement Report
  • Final Inspection Report
  • Traceability Documentation
  • Packaging for safe transportation
