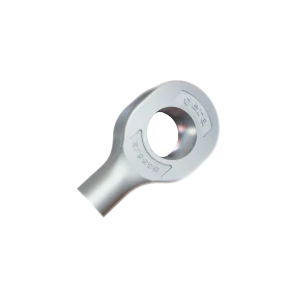

Rod Head
The Rod Head is a forged railway component used in Y25 bogie systems. It serves as a critical connecting element within the bogie assembly, ensuring proper alignment and mechanical stability under operational loads. Manufactured from high-strength steel, the Rod Head is designed to withstand dynamic stresses and vibrations encountered in railway applications.
Technical Specifications
| Parameter | Value |
| Material : | S355J2 |

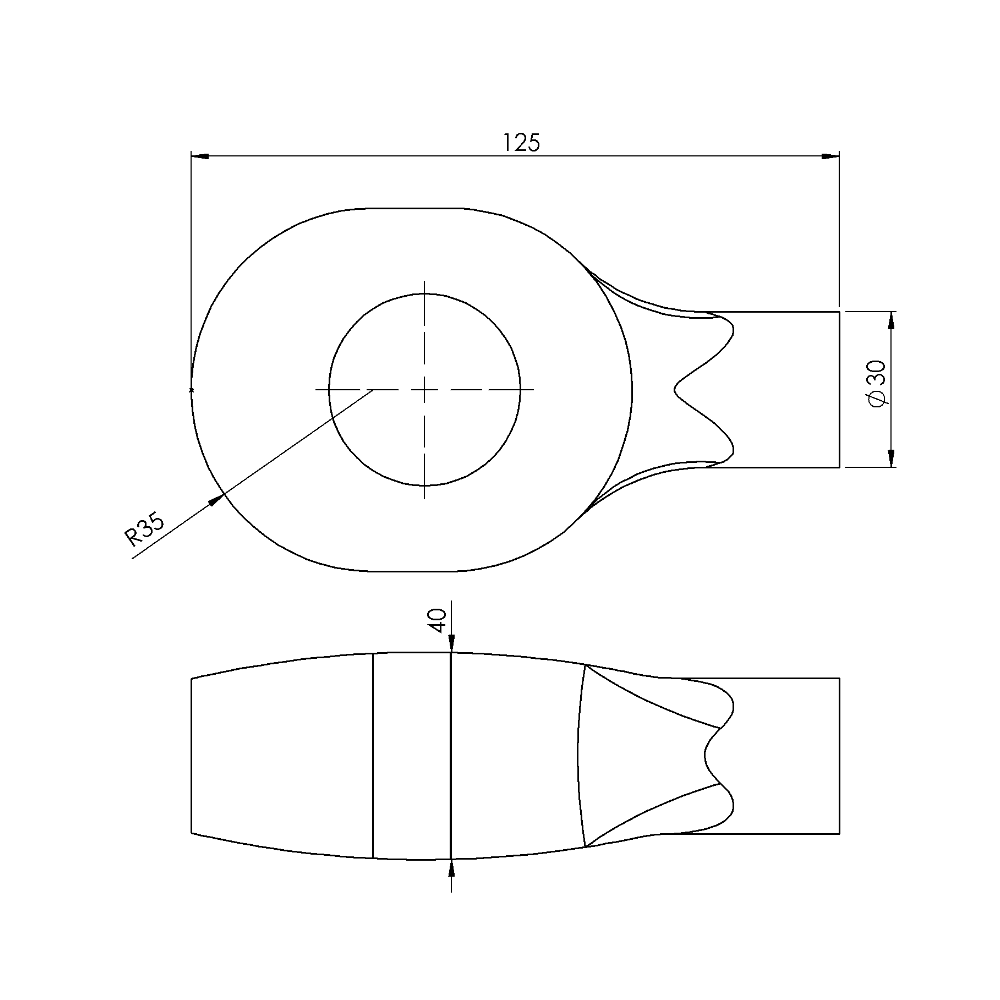

| Drawing No : | V.70.09.03.03.02 |
| Standard : | EN 10025-2 (S355J2) |
| Weight : | 2 kg |
| Manuf. Meth. : | Hot Forging + Machining |
| Category : | Railway Forging Parts |
| Application : | Y25 Bogie Systems |
- High-strength forged steel structure
- Compact design for efficient load transfer
- Good resistance to mechanical stresses and vibrations
- Precision-machined surfaces for accurate assembly
- Long service life under demanding railway conditions
- Raw material inspection
- Hot forging
- Heat treatment
- Machining
- Final inspection
- Surface defect inspection
- Macro/microstructure tests
- Dimensional inspection
- CMM (Coordinate Measuring Machine)
inspection report - NDT (Non-Destructive Testing),
when applicable
- EN standards compliance
- ISO 9001 quality management
- EN 10204 3.1 material certificate
- NDT certification
- Material Certificate (3.1)
- CMM Dimensional Measurement Report
- Final Inspection Report
- Traceability Documentation
- Packaging for safe transportation
