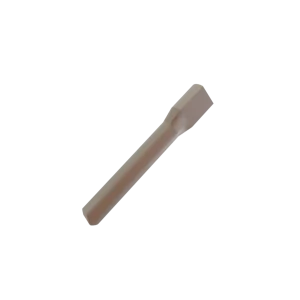

Rod
The Rod is a forged railway part used in Y25 bogie assemblies. With its compact dimensions and robust steel construction, it ensures reliable performance under operational stresses. Precision machining guarantees accurate fitment, while the forging process provides strength and durability for long service life in railway applications.
Technical Specifications
| Parameter | Value |
| Material : | S235J2 |

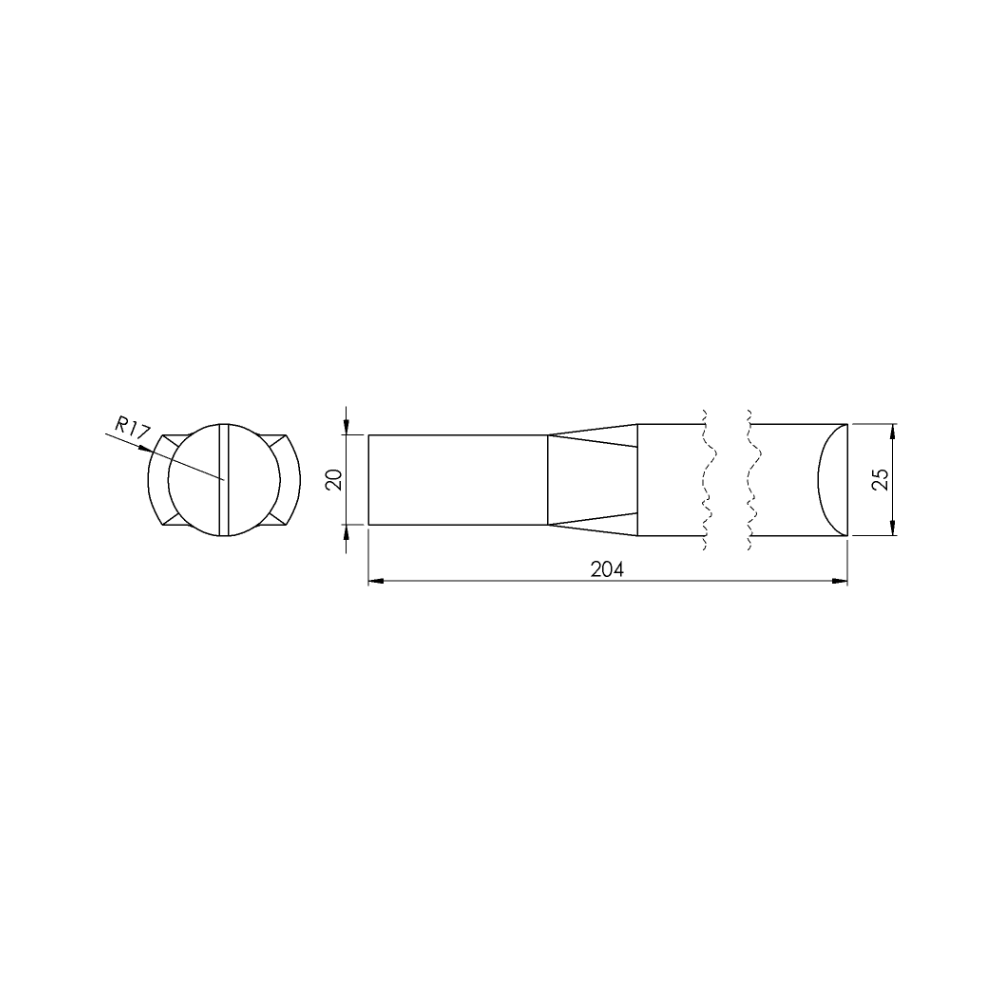

| Drawing No : | V.70.07.05.00.02 |
| Standard : | EN 10025-2 (S235J2) |
| Weight : | 1 kg |
| Manuf. Meth. : | Hot Forging + Machining |
| Category : | Railway Forging Parts |
| Application : | Y25 Bogie Systems |
- High-strength forged steel construction
- Compact design for efficient assembly
- Excellent resistance to mechanical stresses and vibrations
- Precision-machined surfaces for accurate alignment
- Lightweight yet durable structure (1 kg)
- Raw material inspection
- Hot forging
- Heat treatment
- Machining
- Final inspection
- Surface defect inspection
- Macro/microstructure tests
- Dimensional inspection
- CMM (Coordinate Measuring Machine)
inspection report - NDT (Non-Destructive Testing),
when applicable
- EN standards compliance
- ISO 9001 quality management
- EN 10204 3.1 material certificate
- NDT certification
- Material Certificate (3.1)
- CMM Dimensional Measurement Report
- Final Inspection Report
- Traceability Documentation
- Packaging for safe transportation
